Description
Improved engagement with intuitive interaction
Samsung’s QB24R-TB touch-enabled small display provides a unique store experience and improves customer engagement, offering customers content up close in a compact design. Designed for professional use, it enables efficient content operation and reliable performance for any business use.

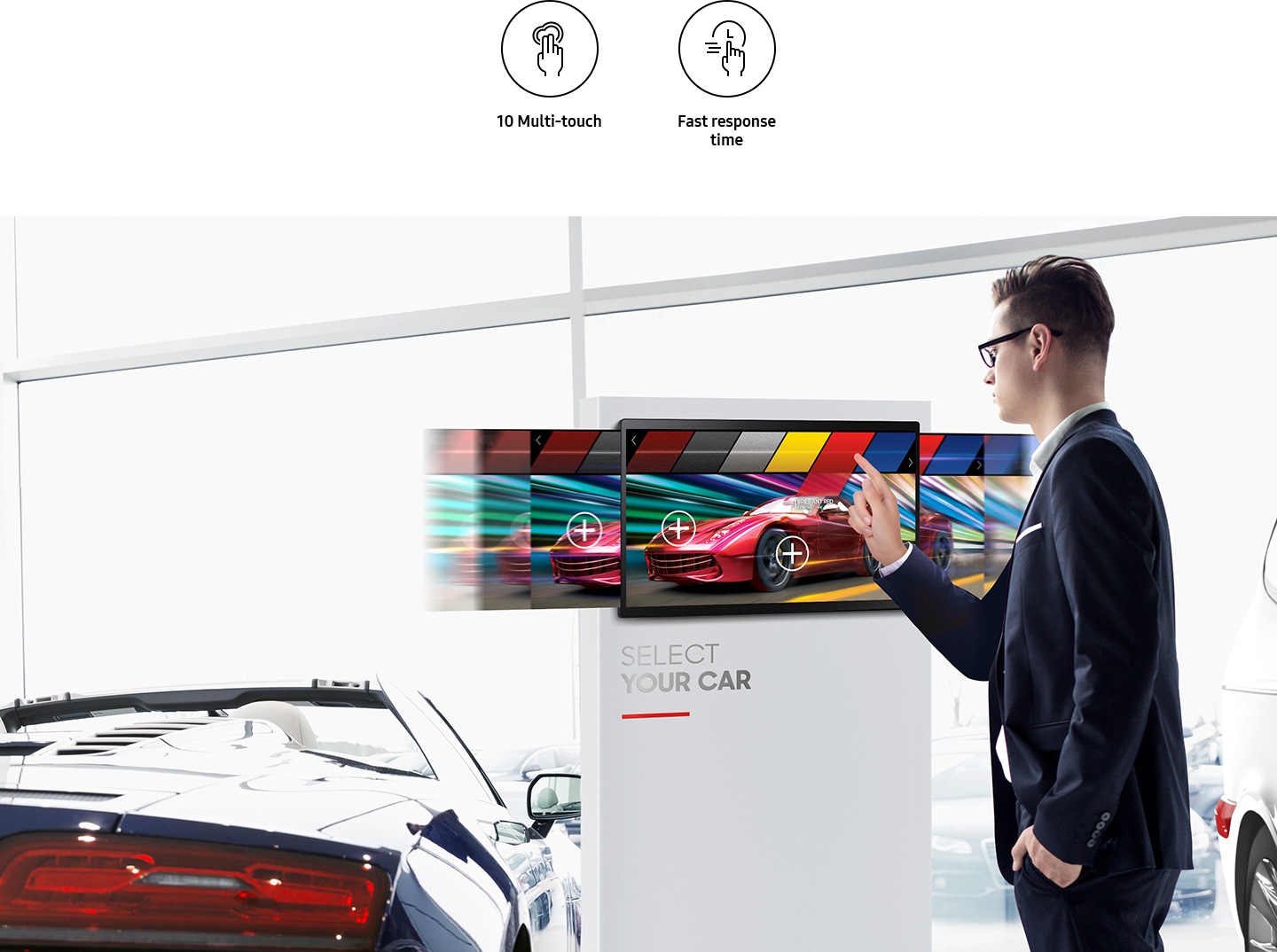

Fast, effective touch capabilities
With integrated capacitive touch functionality, the QB24R-TB provides a user-friendly experience. Its 10-point multi-touch and fast response time powers an intuitive interface that allows for customer-driven search and action, creating new customer interactions and driving purchase.
Crisp and visible content
Samsung’s QB24R-TB is enhanced by a non-glare panel which always delivers clear images and text regardless of any ambient light. This essential feature is supported by reliable 16/7 operation, suitable for professional use.

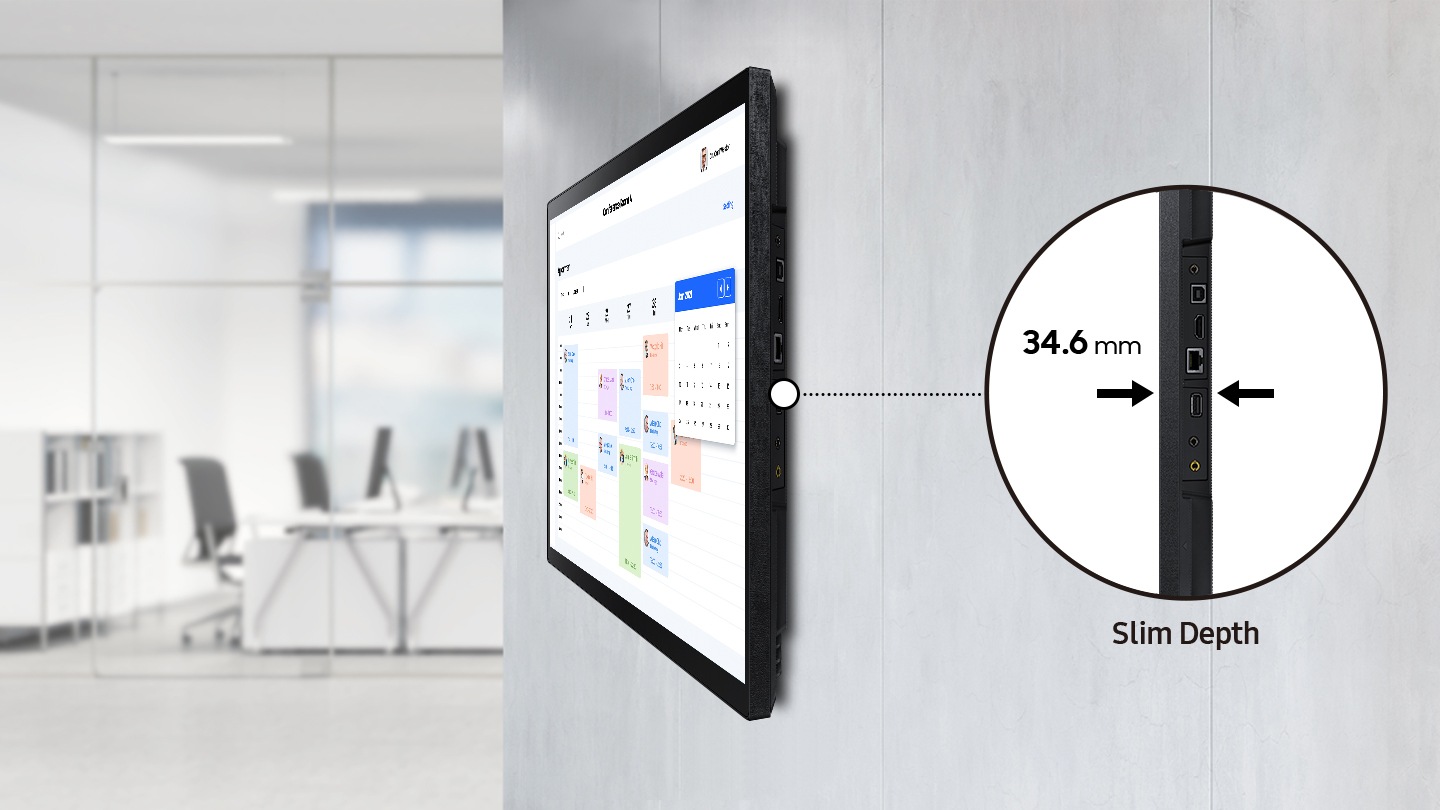

Slim design
The compact and slim design of the QB24R-TB allows for efficient space utilization, even in compact locations. A sleek rear design makes the display optimal for wall mounting while the connectivity, content play and device controls are easy to operate.

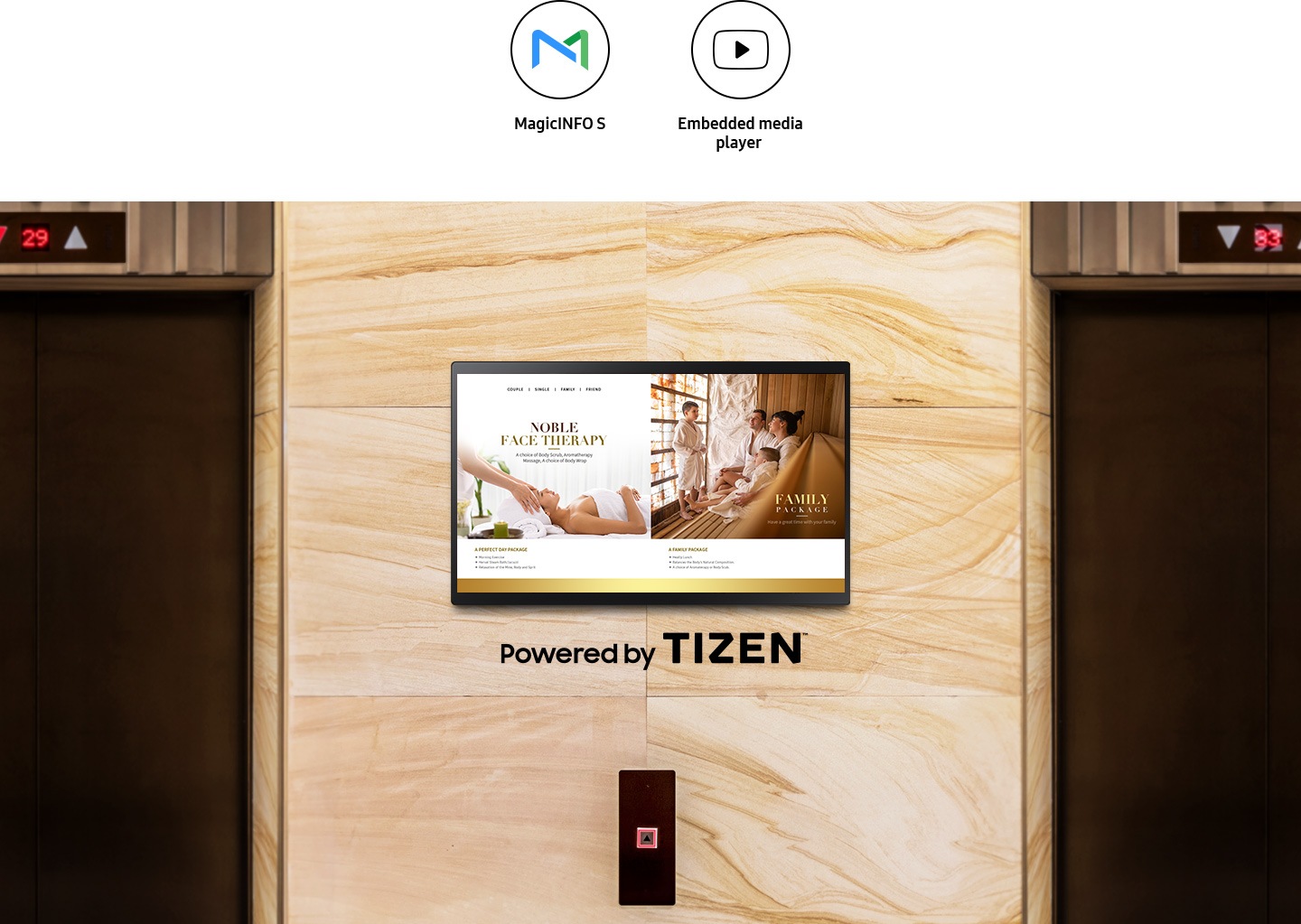

Powerful content playback
With an embedded MagicINFO S player, backed by TIZEN, the QB24R-TB allows efficient and seamless playback without any external media player. SSSP also allows easy content development through reinforced compatibility with multiple web formats.
Comprehensive security setup
The powerful Knox security system provides rigid, three-layer security, offering airtight protection at the application, platform and system level, while restricting access to content and hardware. In addition, remote control of the network and USB ports prevents any unauthorized access.
Convenient, clean display control
With center IR, each display receives IR signals direct to the panel, allowing easy and convenient remote control. When mounted, the display doesn’t require an IR receiver cabling extension. Built-in Wi-Fi allows wireless remote management for both content and display.
Safe operation, reliable performance
The QB24R-TB is electromagnetic compatibility (EMC) class B compliant, meeting strict safety and reliability standards for operation. Additionally, IP5x rating ensures durable performance even in dusty environments.
Specifications
-
Display23.8″
-
Resolution1,920 x 1,080
-
Brightness (Typ)250 (Typ, w/o glass)
-
Contrast Ratio1000:1 (without glass)
Specifications Detail
Display
- Diagonal Size23.8″
- Panel TypeADS
- Resolution1,920 x 1,080
- Pixel Pitch (HxV)0.2745 x 0.2745 mm
- Brightness (Typ)250 (Typ, w/o glass)
- Contrast Ratio1000:1 (without glass)
- Viewing Angle (Horizontal/Vertical)178/178
- Response Time14 ms
- Colour Gamut72%
- Brightness25 (without glass)
- H-Scanning Frequency48 ~ 75 KHz
- Maximum Pixel Frequency594 MHz
- V-Scanning Frequency56 ~ 84.5 Hz
- Contrast Ratio (Dynamic)Mega
- Operation Time Support16/7
Connectivity
- HDMI In1
- DP InNo
- Version of HDMI1.4
- Version of DPNo
- Version of HDCP2.2
- USB1
- IR InYes
- Audio InNo
- Audio OutStereo Mini Jack
- RS232 InYes
- RJ45 InYes
- WiFiYes
- 3G DongleNo
Power
- Power SupplyAC 100 – 240 V 50/60 Hz
- Power Consumption (On Mode)38.5 W
- Power Consumption (Sleep Mode)0.5 W
Dimension
- Set Dimension (WxHxD)547.9 x 334.4 x 34.6 mm
- Package Dimension (WxHxD)620 x 419 x 122 mm
Weight
- Set Weight4.0 kg
- Package Weight5.2 kg
Operation Conditions
- Temperature0℃ ~ 40℃
- Humidity10 ~ 80%, non-condensing
Mechanical Specification
- VESA Mount100 x 100 mm
- Frame MaterialNon-Glossy
Optional Feature
- TouchYes
- MountNo
- StandNo
SoC
- OS VersionTizen 4.0
- Flash Memory Size8 GB
Touch
- Touch TechnologyCapative
Certification and Compliance
- EMCClass B FCC (USA) Part 15, Subpart B KCC/EK (Korea) Tuner : KN32 / KN35 Tunerless : KN32 / KN35 CE (Europe) EN55032 : 2012 or 2015 EN55024:2010 or EN 55035:2017 VCCI (Japan) VCCI CISPR32:2016 CCC(China) GB/T9254-2008 GB17625.1-2012 BSMI (Taiwan) CNS13438 ( ITE EMI ) CNS14336-1 ( ITE Safety ) CNS15663 (RoHS) C-Tick (Australia) AS/NZS CISPR32:2015 GOST(Russia/CIS) ROCT CISPR 24-2013 ROCT CISPR 22:2005
- SafetyCB (Europe) : IEC60950-1/EN60950-1CCC (China) : GB4943.1-2011PSB (Singapore ) : PSB+IEC60950-1NOM (Mexico ) : NOM-001-SCFI-1993IRAM (Argentina ) : IRAM+IEC60950-1SASO (Saudi Arabia ) : SASO+IEC60950-1BIS(India) : IEC60950-1 / IS13252NOM(Mexico) : Tuner : NOM-001-SCFI-1993 Tunerless : NOM-019-SCFI-1998KC(Korea) : K 60950-1EAC(Russia) : EAC+IEC60950-1INMETRO(Brazil) : INMETRO+IEC60950-1BSMI(Taiwan) : BSMI+IEC60950-1RCM(Australia) : IEC60950-1/AS/NZS 60950-1UL(USA) : cUL60950
