SAMSUNG 55″ High Brightness Signage Display for Outdoor Usage LH55OHFPVBC/EN


  • IP56 Rated
  • 2500 Nits Brightness
  • 24/7 Usage

R35,000.00 R49,500.00

An all-encompassing array of pre-assembled, outdoor-ready features

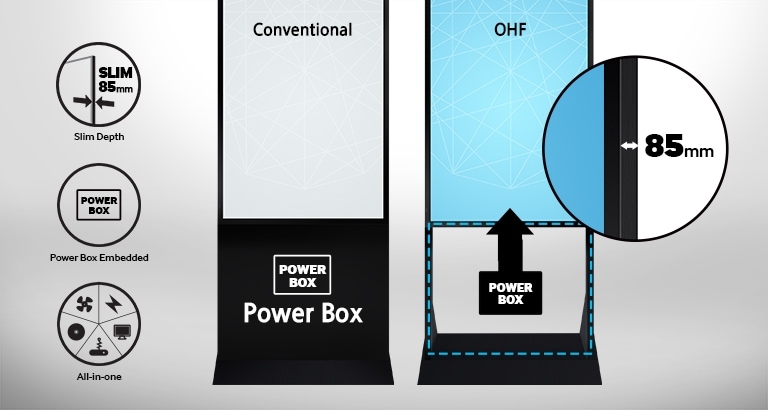

The OHF Series displays feature a thinly-designed, all-in-one composition which enables convenient and easy installation. A thorough package equips the displays for long-term performance, and includes ingress protection, anti-reflection technology, vandalism defense and a highly-efficient cooling system, among others. In addition, an integrated power box condenses operational components and accommodates an ultra-slim (85 mm.) frame. Embedded network hub and Wi-Fi functionality further reduce TCO by eliminating the need for a router when linking products, and allow smooth connectivity should the display be exposed to heat or water.



An all-encompassing array of pre-assembled, outdoor-ready features

Robust IK10 endurance

Tempered, IK10-certified* Magic Glass (5 mm.) provides the OHF Series displays with durable advanced protection against a range of external and environmental factors. Should the protective glass break, a strategically-placed gap between the Magic Glass and LCD panel prevents significant damage and enables efficient repair. *The IK European strength test rating uses a 0-10 scale (where 10 indicates the highest possible protection) to measure the degree of resistance against external impact.



Robust IK10 endurance

Energy-efficient performance

Through advanced thermal control functionality and a filter-free design, the OHF Series displays operate at reduced energy consumption. An integrated heat exchanger modifies signage resources depending on the environment, and ultimately cuts costs for operators.



Energy-efficient performance

Excellent and Captivating Visibility

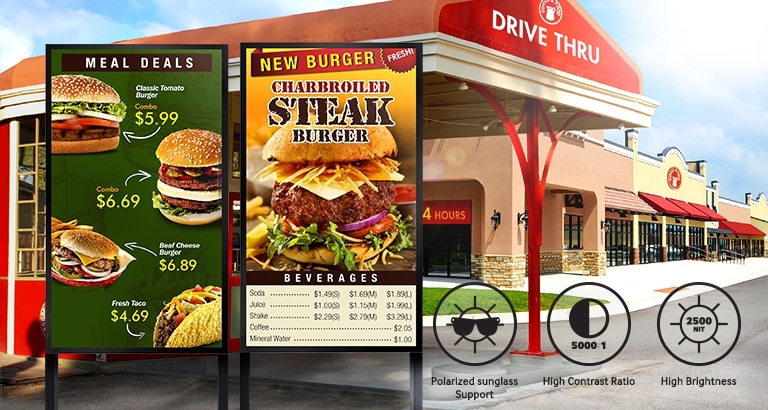

• High VisibilityThe OHF Series displays feature innovative Magic Glass, TUV-certified image quality and an Auto Brightness sensor to improve picture quality and optimise message delivery for any viewer. When combined, these features produce high 2500nit brightness and a 5000:1 contrast ratio that amplify any type of content*. These powerful displays also include circular polarizing technology that eliminates display blindness caused by polarized sunglasses.

*The 2500nit brightness and 5000:1 contrast ratio settings are available for all OHF Series models larger than 24 in.

• Reflection PreventionBeyond its basic picture enhancement functionality, the OHF Series’ Magic Glass minimises reflection and enables rich, clear image presentation even when exposed to direct sunlight. Along with their high brightness and contrast ratio, the OHF Series displays’ reflectivity ensures continuous visibility and content integrity in any outdoor setting.



Excellent and Captivating Visibility

Operate reliably in virtually any environment

Each OHF Series display undergoes rigorous IP56 ingress defense testing to ensure resistance to dust, heat, moisture and other environmental variables that can impede operations. This includes an integrated self-cooling system that keeps the OHF Series displays running in temperatures ranging from -30 ℃ (-22 ℉) to 50 ℃ (122 ℉). In turn, operators can feel confident in the displays’ ability to perform 24/7, and without requiring expensive external cooling systems or security measures.



Operate reliably in virtually any environment

Robust content creation and management

Samsung’s MagicInfo Player S4 equips OHF Series users with a new graphic engine that boosts overall display performance while ensuring a seamless content transition. The platform also operates as an advanced content management solution that enables more convenient content creation, scheduling and deployment. MagicInfo Player S4 is robust enough to help large organisations monitor and manage multiple OHF Series displays through a single, centralized server.



Robustcontent creation and management

VESA-compliant for simplified mounting

To accommodate VESA regulations, users can add optional brackets* to their OHF Series package. Beyond ensuring compliance, the brackets offer greater flexibility to mount displays in preferred locations without having to purchase specialised wall mounts. *Brackets are only available for the 46- and 55-inch OHF Series display models.



VESA-compliant for simplified mounting
SKU: JLJ210 Categories: , Tags: , , , , , , , ,
  • Display
    • Diagonal Size
      55″
    • Panel Type
      60 Hz E-LED BLU
    • Resolution
      1,920 x 1,080
    • Brightness (Typical, cd/m2)
      2500 nit
    • Contrast Ratio
      4000 : 1
    • Viewing Angle (H/V)
      178 / 178
    • Response Time
      8 ms
    • Color Gamut
      72%
    • Glass Haze
      0%
    • H-Scanning Frequency
      67.5 kHz
    • Maximum Pixel Frequency
      74.25 MHz
    • V-Scanning Frequency
      60 Hz
    • Dynamic Contrast Ratio
      100000 : 1
  • Connectivity
    • HDMI In
      2
    • USB
      Yes
    • Audio Out
      Stereo Mini Jack
    • Video Out
      No
    • Power Out
      No
    • RS232 In
      Yes
    • RS232 Out
      Yes
    • RJ45 In
      Yes
    • RJ45 Out
      Yes
    • HDBaseT In
      Yes
    • Bluetooth
      No
  • Power
    • Power Supply
      AC 100 – 240 V (+/- 10%), 50 / 60 Hz
    • Power Consumption (On Mode, W)
      ‎450‎
    • Power Consumption (Sleep Mode, W)
      ‎0.5‎
  • Dimension
    • Set Dimension (WxHxD, mm)
      ‎1260.6 x 731.4 x 85.0‎
    • Package Dimension (WxHxD, mm)
      ‎1358 x 845 x 230‎
  • Weight
    • Set Weight (kg)
      ‎46.1‎
    • Package Weight (kg)
      ‎52.6‎
  • Mechanical Specification
    • Bezel Width (mm)
      ‎24.9‎
    • Glass Thickness
      5T
    • Glass Film
      AG, AR, 4
  • Operation Conditions
    • Temperature
      -30 ~ 50
    • Humidity
      10 ~ 80%, Non-condensing
  • General Feature
    • External Memory Slot
      No
  • Optional Feature
    • Protection Glass
      Yes
  • Eco
    • Energy Efficiency Class
      D
  • Certification and Compliance
    • EMC
      Yes
    • Safety
      Yes
